Description

Models Available

Suzuki DF175APL (Long Shaft 508mm) £14999

Suzuki DF175APX (Extra Long Shaft 635mm) £15599

Fuel Efficient

With a combination of our Lean Burn technology, a semi-direct intake system and a high performance compression ratio of 10.2-to-1, these new outboards deliver clean, efficient power. Compared to the current 175 and 150, the DF175A is 14% more fuel efficient and the DF150A shows a 7% improvement for significant savings at the fuel dock.

Powerful

With more torque (3.1% more for the DF150A and 2.7% more for the DF175A), as well as Suzuki’s proven offset driveshaft layout with 2-stage gear reduction, these new outboards generate more power throughout the full rpm range. Even on heavier, fully loaded boats, the DF150A and 175A take performance to the next level.

Quick Acceleration

The DF150A and DF175A now share the same engine block used for our popular DF200A. More displacement and improved mechanical design combine for quicker acceleration, whether out of the hole or in mid-range. We’re satisfying our customers’ desire for performance and improved fuel economy.

Reliable

These new outboards take full advantage of Suzuki’s proven Ultimate 4-stroke technology to provide season after season of reliable performance. A knock sensor keeps the engine running smoothly for improved durability. An O2 sensor improves engine efficiency and Suzuki’s water detecting system helps protect the engine from the effects of bad gas, which include poor combustion, lower power output and corrosion.

Data used in this product information was obtained through in – house testing under uniform conditions. Results will vary depending upon operating conditions.

Advanced Technology for the Performance

Offset Driveshaft

EXPLANATION

The engine powerhead is offset closer to the transom, moving the outboard’s center of gravity forward.

ADVANTAGE

Less vibration

More compact engine

Stable steering performance

Diagram of Offset Driveshaft

2-Stage Gear Reduction

EXPLANATION

This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing greater torque.

ADVANTAGE

High propulsive efficiency with large diameter propeller.

Powerful navigation, maintaining propeller rotation even with a larger load.

Power to turn large diameter propellers, offering quick acceleration.

Diagram of 2-Stage Gear Reduction

Multi-Stage Induction System

EXPLANATION

Intake manifold pipes are switched between short and long ones during low speed and high speed operation to ensure the right volume of air entering the engine.

ADVANTAGE

Increases output during high speed operation with greater volume of air input.

Increases combustion efficiency and maximizes torque by increasing the density in the air intake during low speed operation.

VVT (Variable Valve Timing)

EXPLANATION

The Variable Valve Timing is used to control the open and close timing on the intake valve depending on the engine operation.

ADVANTAGE

Offers smooth, powerful torque.

Provides tremendous acceleration during operation at all speed ranges.

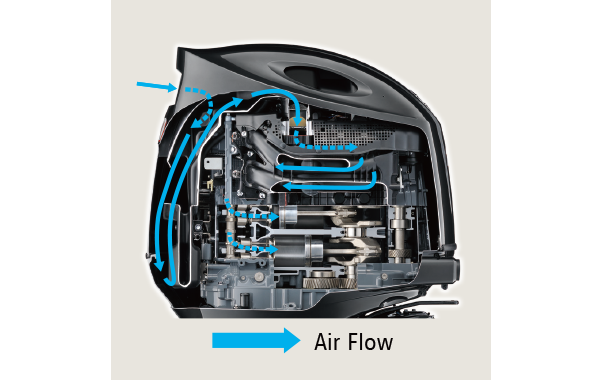

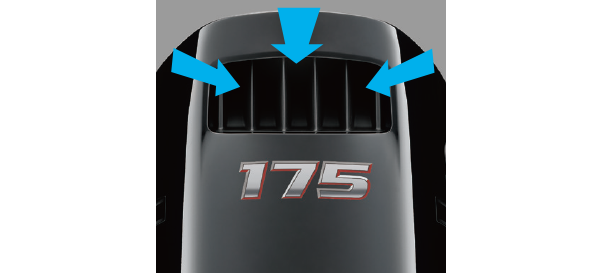

Semi-Direct Air Intake System
